800-Ton Hydraulic Press: An In-Depth Analysis of the Power Behind the Wisdom and Innovation
Introduction
In the realm of industrial manufacturing, the 800-ton hydraulic press stands as a testament to the fusion of raw power and advanced technology. This colossal machine, capable of exerting immense force with remarkable precision, is a cornerstone in various manufacturing processes, from metal forming and plastics molding to aerospace components and automotive parts production. However, the true essence of the 800-ton hydraulic press lies not just in its sheer strength but in the intricate systems and innovative technologies that drive it. This article delves into the depths of this industrial marvel, exploring the wisdom behind its design, the innovations that enhance its capabilities, and the profound impact it has on modern manufacturing.

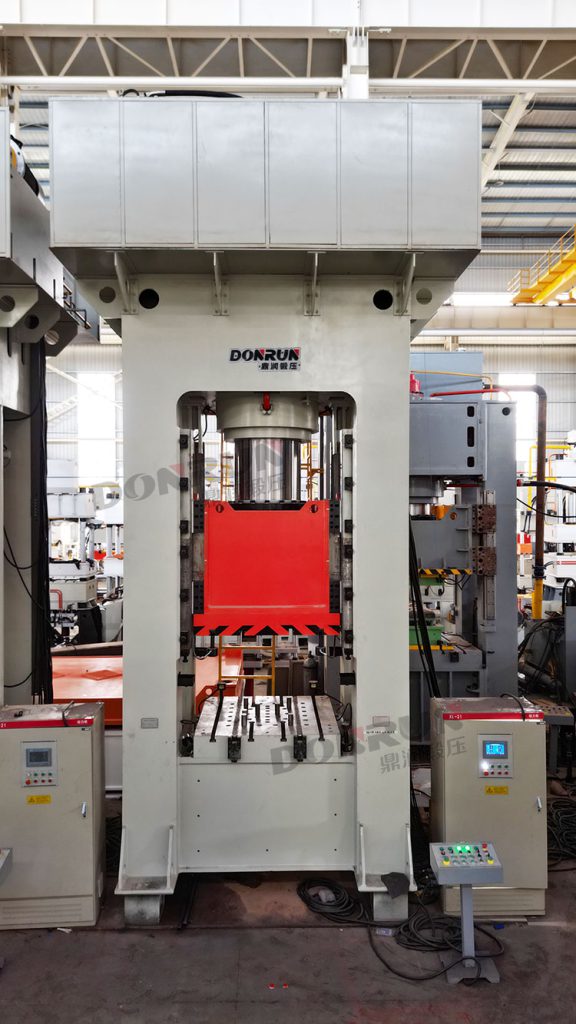

The Anatomy of an 800-Ton Hydraulic Press
At its core, an 800-ton hydraulic press is a machine that utilizes hydraulic power to generate and transmit force. It consists of several key components, each playing a crucial role in its operation:
Frame Structure: The backbone of the hydraulic press, the frame is typically constructed from high-strength steel, welded or cast into a sturdy rectangular or box-shaped structure. This design ensures that the machine can withstand enormous pressures without deformation, maintaining rigidity and stability throughout its operation.
Hydraulic System: This includes the hydraulic pump, valves, pipelines, accumulators, filters, coolers, and reservoir. The hydraulic pump provides high-pressure hydraulic oil, while the valves (directional, pressure, and flow control valves) regulate the oil's flow, pressure, and volume, enabling precise control over the ram's speed, position, and force. The reservoir stores the hydraulic oil, which is kept clean and at an optimal temperature through filters and coolers.
Ram (or Piston Rod): Installed within the frame, the ram moves in a straight line, driven by the hydraulic cylinder. Its top is usually equipped with a worktable or mold mounting interface for fixing workpieces and installing molds. The ram applies pressure to the workpiece to complete the processing task.
Hydraulic Cylinder: The heart of the hydraulic press, the cylinder generates thrust through the piston acting on high-pressure hydraulic oil, driving the ram's movement. Cylinders come in single-acting (oil supplied to one end for pressing) and double-acting (oil supplied alternately to both ends for fast descent and return) varieties, with cylinder materials and sealing technologies ensuring long-term stable operation under high pressure.
Electrical Control System: Comprising motors, relays, sensors, PLCs (Programmable Logic Controllers), and other electrical components, this system controls the hydraulic system's startup, reversal, pressure regulation, and interaction with external devices, enabling automated operation and safety protection functions such as overpressure alarms, stroke limits, and emergency stops.
Auxiliary Devices: These include ejector mechanisms, side pushers, mold cushions, and quick mold change systems, tailored to specific processing needs to assist in workpiece ejection, complex shape processing, or productivity enhancement.
The Wisdom Behind the Design
The design of the 800-ton hydraulic press embodies a blend of engineering ingenuity and practical experience. Key design considerations include:
Rigidity and Stability: The frame's high-strength steel construction ensures it can withstand the immense forces involved in pressing operations, maintaining precision and accuracy. The internal guiding devices ensure the ram moves in a straight line, crucial for achieving consistent and high-quality results.
Hydraulic Efficiency: The hydraulic system's design focuses on minimizing energy loss and maximizing efficiency. High-efficiency pumps, precision valves, and advanced cooling systems contribute to this, ensuring the press operates smoothly and reliably under varying loads.
Control Precision: The electrical control system integrates state-of-the-art sensors and PLCs, enabling real-time monitoring and precise control of all operational parameters. This ensures that the press can adapt to different processing requirements with exceptional accuracy and flexibility.
Innovations Enhancing Capabilities
The continuous evolution of technology has significantly enhanced the capabilities of the 800-ton hydraulic press. Key innovations include:
Servo Hydraulic Systems: Traditional hydraulic systems have been revolutionized by the integration of servo technology. Servo valves, controlled by electronic controllers and sensors, enable precise regulation of pressure and flow, ensuring stability and minimizing pressure fluctuations. This results in higher processing accuracy and reduced energy consumption.
Advanced Control Systems: Modern hydraulic presses feature sophisticated control systems incorporating PLCs, HMIs (Human-Machine Interfaces), and remote monitoring capabilities. These systems enable operators to monitor and control the press from anywhere, optimizing performance and quickly addressing any issues that arise.
Temperature Control Systems: High-efficiency oil cooling systems and temperature control devices maintain the hydraulic oil within an optimal temperature range, preventing overheating and ensuring stable system performance. This extends the lifespan of hydraulic components and enhances overall reliability.
Vibration and Noise Reduction Technologies: To minimize vibration and noise, hydraulic presses now incorporate shock absorbers, vibration isolators, and optimized structural designs. These technologies distribute vibration energy, reducing its impact on the press and workpieces, thereby enhancing processing accuracy and stability.
Flexible and Modular Designs: Manufacturers are increasingly adopting flexible and modular designs to adapt to diverse processing requirements. This allows for quick and easy adjustments to the press's configuration, enhancing its versatility and productivity.
Profound Impact on Modern Manufacturing
The 800-ton hydraulic press has profoundly impacted modern manufacturing, driving innovation and efficiency across various industries:
Automotive Industry: In the automotive sector, the press is crucial for body stamping, mold forming, and other processes. Its high stability and precision ensure that body components meet stringent size, surface quality, and mechanical property requirements, contributing to safer and more reliable vehicles.
Aerospace Industry: The aerospace industry demands extremely high-quality components. The 800-ton hydraulic press excels in deep drawing, extrusion molding, and other complex metal forming processes, ensuring that parts meet international standards for size accuracy, surface quality, and mechanical properties.
Electronics Manufacturing: In the electronics industry, the press plays a vital role in the processing of components such as casings and heat sinks. Its high-precision pressure control and intelligent systems guarantee consistent high-quality outputs during long-term batch production.
Metal Products Industry: From automotive parts to shipbuilding and hardware products, the versatility of the 800-ton hydraulic press makes it indispensable in the metal products industry. Its ability to handle a wide range of materials and thicknesses ensures efficient and accurate processing of various components.
Plastic and Rubber Products Industry: In the plastic and rubber products industry, the press is used for molding operations, enabling the production of intricate and high-quality plastic and rubber parts for various applications.
Future Prospects and Challenges
As technology advances, the 800-ton hydraulic press is poised for further innovations, enhancing its capabilities and拓宽其应用范围。 However, several challenges remain:
Energy Efficiency: Improving energy efficiency remains a critical challenge. Manufacturers are continuously exploring new materials, designs, and control strategies to minimize energy consumption and reduce environmental impact.
Automation and Digitization: The trend towards automation and digitization is accelerating. Manufacturers must integrate advanced sensors, AI algorithms, and IoT technologies to enable real-time monitoring, predictive maintenance, and optimized process control.
Material Handling and Automation Integration: Efficient material handling and integration with other automated systems are essential for enhancing productivity. Manufacturers are developing innovative solutions to streamline material flow and minimize manual intervention.
Customization and Flexibility: Meeting diverse and ever-changing customer demands requires high levels of customization and flexibility. Manufacturers must adopt modular designs and flexible manufacturing strategies to quickly adapt to new product requirements.
Conclusion
The 800-ton hydraulic press is a testament to the fusion of raw power and advanced technology in industrial manufacturing. Its intricate design, incorporating high-strength materials, precision hydraulic systems, and sophisticated control technologies, ensures it can handle complex and high-load processing tasks with remarkable accuracy and stability. The continuous evolution of technology has significantly enhanced its capabilities, driving innovation and efficiency across various industries.
As we look to the future, the 800-ton hydraulic press faces both exciting prospects and significant challenges. By embracing advancements in energy efficiency, automation, digitization, material handling, and customization, manufacturers can further unlock its potential, pushing the boundaries of modern manufacturing and contributing to a more sustainable and efficient industrial landscape. The journey of the 800-ton hydraulic press is a testament to human ingenuity and the relentless pursuit of excellence in industrial innovation.
